Part number: | 05-01182 |

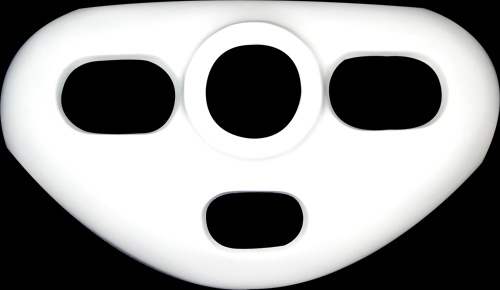

This design can be used with most any Continental or Lycoming engine. Used on the original Smith Miniplane but has been installed on the Pitts, EAA Bipe, Playboy, Flybaby & Baby Great Lakes. Measures 35"wide by 19.5" high. Face of center opening 8-1/2" O.D.
All parts are aircraft quality, hand layed for uniform thickness and light weight. Items are finished with grey primer gel coat which minimizes sanding and eliminates the need for primer paint.
Note:Light sanding is required to remove mold release wax residue from surface of all fiberglass items prior to painting.
Unit | EA |
Hazardous | No |
Oversize | Yes |
Weight | 4.989 kg |
