Eye Bolt Undrilled AN42B-13A

Part number:

AN42B-13A

18.72 EUR

incl. 19% VAT, excl. shipping

Will ship today if you order before 14:00. This information is valid for up to 2 PC

Available Quantities:

Today:	2 PC
In 13 days:	8 PC

Description:

Nominal Length 1-3/8
Grip Length 1

Eye bolts are special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI . Eye bolts will be furnished with either drilled or undrilled shank. Add letter "A" after dash number for undrilled shank.

Q+A

What is meant by nominal length and grip length? I need several eye bolts that will penetrate into wood about 1 1/8 with room to attach a nut at one end.

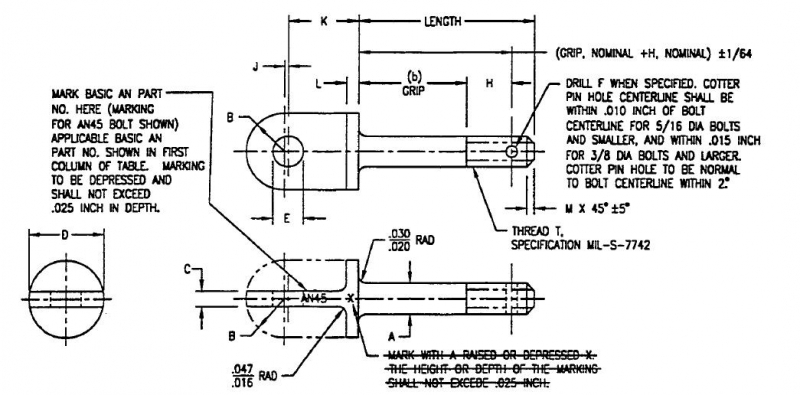

Nominal length refers to the length from the bottom of the head to the bottom of the thread. Grip length is from the bottom of the head to the start of the thread. We have added a drawing in the "Reference Drawing" tab which will give show these lengths.

Unit	PC
Hazardous	No
Oversize	No
Weight	0.009 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
