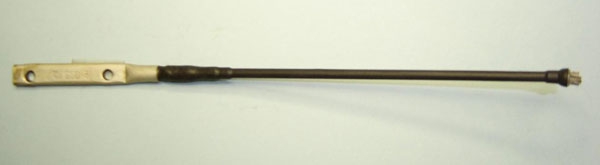

Static Wick ESD-3 (Non-Certified)

• Length: (Including mounting base) 7.65 inches. (discharger element) 4.75 inches
• Weight: Less than 5.5 grams
• Airspeed : To 50,000 feet msl
• Temperature: +85°C to -55°C, MIL-STD-202C, Method 102A, Condition D
• Tension: 50 pound pull longitudinal from plastic end to metal shank
• Solvents: No physical changes after one hour immersion in aviation gasoline, jet fuel or hydraulic fluids
