B&C GB24 Ground Block 24-Tab
Part number: | 07-03463 |
In 8 days: | 5 EA |

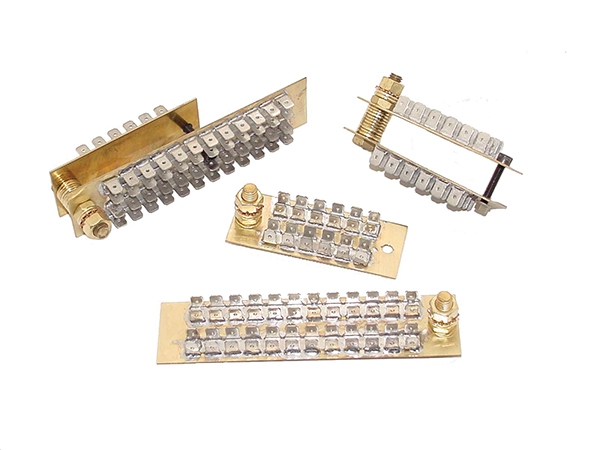

Discourage those pesky (and noisy) electrical gremlins and ground-loops by using our Ground Blocks as a centralized grounding system. These are hand-made from .04 flat brass stock, sheared to size, with 24 or 48 Fast-On tabs securely soldered into place. Ships complete with installation hardwarebrass bolt, nuts, internal-tooth lock washers, and spacer washers to accommodate any thickness of firewall. Most projects will require a single 24-point Ground Block on the cockpit side of the firewall; loaded electrical systems may require the 48-point block. A full firewall ground kit is also available in two sizes for composite aircraft needing ground points on both sides of the firewall.
Choosing A Ground System:
Most projects can do the job with a single, 24-point ground block on the cockpit side of the firewall. Many electrical accessories forward of the firewall get an electrical ground by virtue their mounting on a metallic firewall - OR - grounded through a mounting on the engine. Only projects with a very busy electrical system will need 48 grounds behind the panel.
Airplanes with composite firewalls need some ground points on the forward side. The full-up firewall ground kit includes a long brass bolt with sufficient brass washers to shim between the two ground blocks on a thick, composite firewall. Single ground blocks are shipped with a shorter brass carry-through bolt, washers, and nuts for sheet metal firewalls.
Description | Part Number |
GB24 B&C GROUND BLOCK 24-TAB | 07-03463 |
GB48 B&C GROUND BLOCK 48-TAB | 07-03464 |
GB24/24 B&C GROUND BLOCK 24/24-TAB FIREWALL KIT | 07-03465 |
GB24/48 B&C GROUND BLOCK 24/48-TAB FIREWALL KIT | 07-03466 |
Unit | EA |
Hazardous | No |
Oversize | No |
Weight | 0.227 kg |
Manufacturer | |
Manufacturer P/N | |
GTIN | |
Core Charge | Yes (add to cart to see price) |
110V device | Yes |
