ACS OIL BREATHER SEPARATOR 10570

Part number:

10570

120.84 EUR

excl. VAT, excl. shipping

Expected shipping date is Wednesday 15 May if you order before 16:00 Wednesday 08 May. This information is valid for up to 17 EA

Available Quantities:

In 8 days:

17 EA

Description:

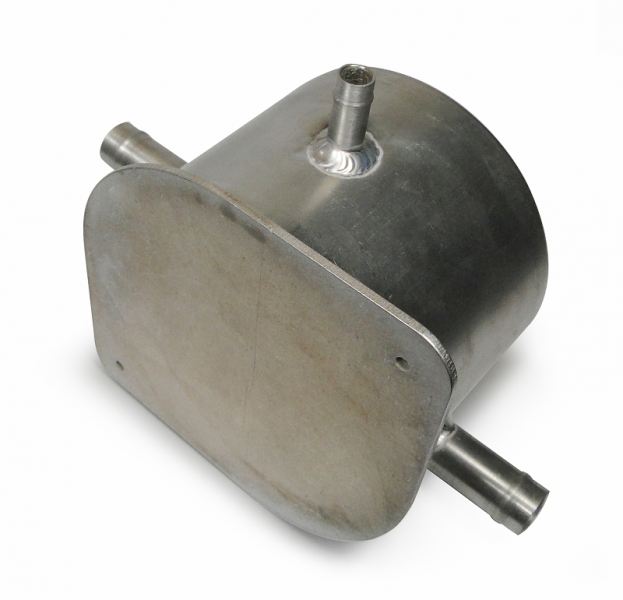

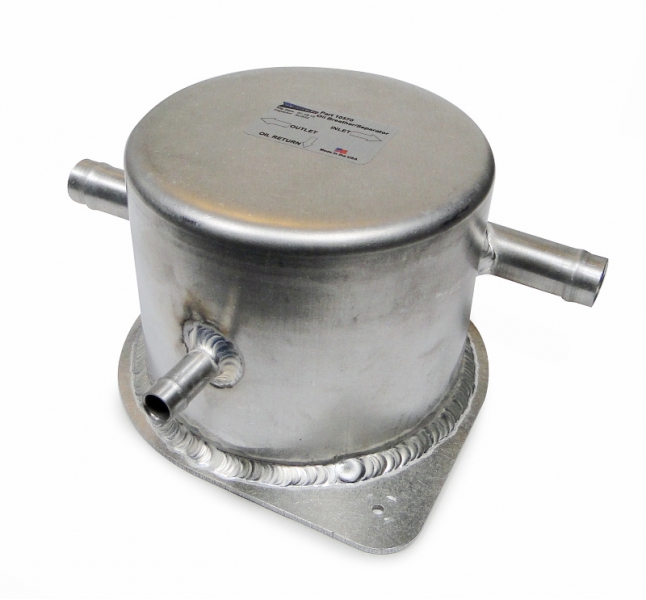

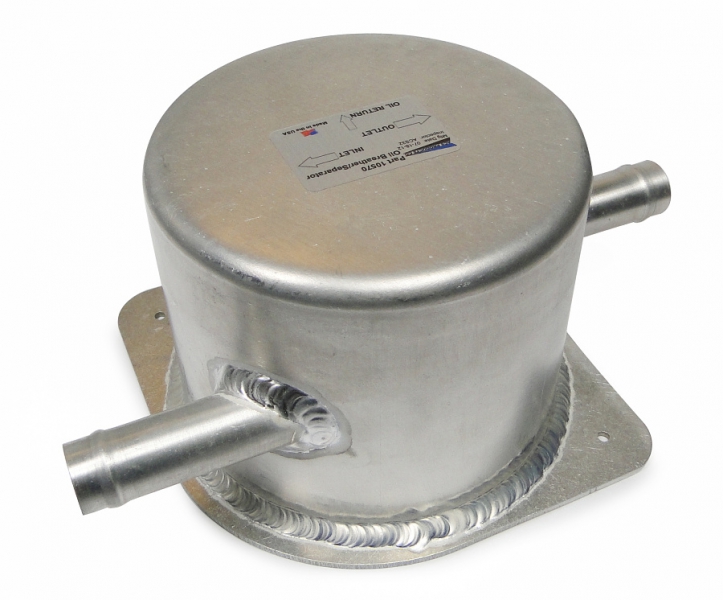

These 4 inch diameter reservoirs have beaded outlets for 5/8" I.D. hoses and a mounting flange for easy firewall attachment. These units are of a new, improved design and the reservoir body is now a spun aluminum bowl for optimum performance. The oil separators minimize oil loss and allow free breathing of the engine. They are recommended for experimental aircraft use only and are not STCd for any certificated aircraft.
Made in USA

by James 11/22/2014
Nice product with quality construction. My one complaint is that the housing is not square with the mounting plate. Mine is clocked a little to the side so that in order for the 3/8 drain on the bottom to be center on the bottom it must be askewed a bit. Probably 1/4 to 3/8 off center at both mounting holes.

Q+A

Do you have any installation literature on your 10570 home builders oil separator? We have one on an RV we just purchased and believe it is installed incorrectly. Thank you, Russ

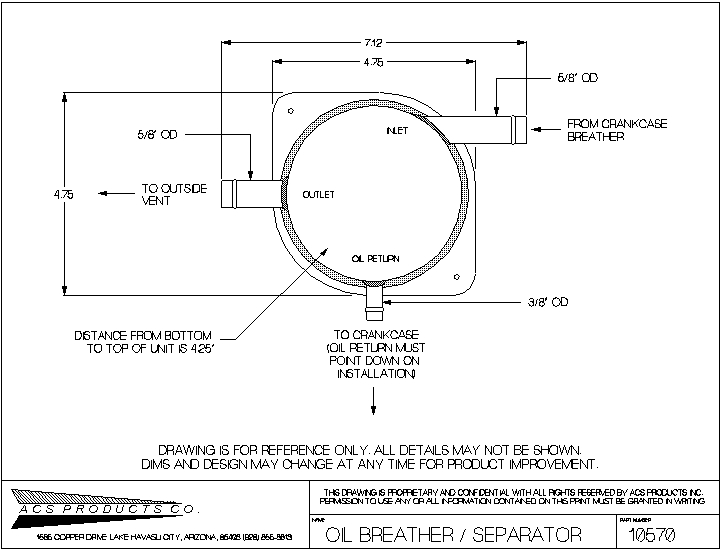

We have added the installation and specification drawing to this web page. Please review it.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.272 kg
