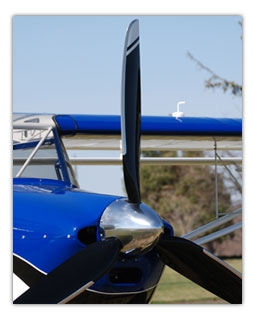

The blade design is optimized for maximum efficiency and minimum noise. The blade structure is manufactured from theromoset epoxy/graphite composite matrix. This advanced composite structure ensures high strength and blade accuracy in all flight environments. Only WhirlWind propellers come standard with electroformed Nickel leading edge shields for superior fit and abrasion protection. The hub is CNC machined from aerospace aluminum and is dimensionally certified; all hubs are surface treated with shot peen for increased strength and cycle life and then Anodized for corrosion protection.

Specifications

• Engines: Rotax 912/914
• Diameter: 64-70 in.
• Weight: 11 lbs.
• HP/RPM: 115@5800
