Whelen Engineering is proud to introduce the NEW ORION500 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION500 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofitable to the Whelen legacy strobe products. The ORION500 series is quite simply the brightest form of LED Anti-collision and Position lighting available.

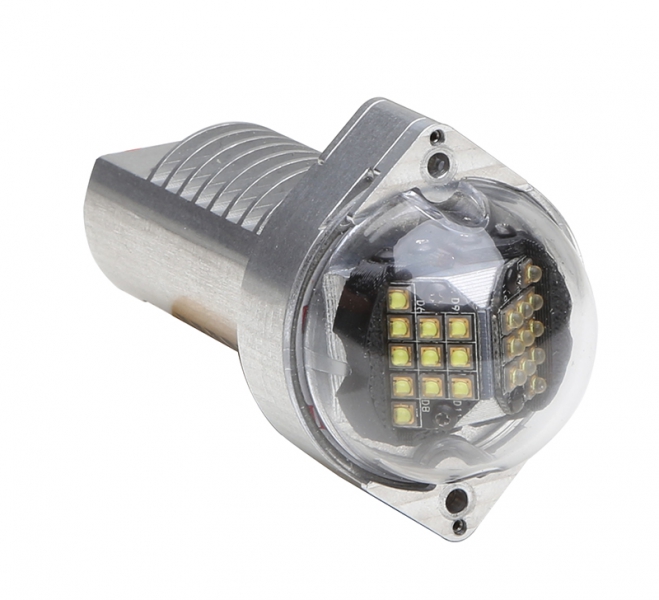

ORION™ 500 Position/Anti-Collision Lighthead:
All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.

• Fully FAA/TSO-C96a & TSO-C30c Approved
• FAR SPEC Certified
• Replaceable hard coated polycarbonate lens to maintain maximum light output
• Aerodynamic design without saacrificing light output
• Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
• Enviornmentally tested and certified to RTCA/D0-160G standards
  • Drawing Number: 71774
  • Weight: .28 lbs (127gm)
  • Current Draw (12V/28V):0.20/0.10 Amp (Position), 0.38/0.19 Amp (Anti-Collision)
  • Position LED Colors: Aviation White
  • Anti-Collision LED Color: Aviation White
  • Lenses: Clear Hardcoated Polycarbonate

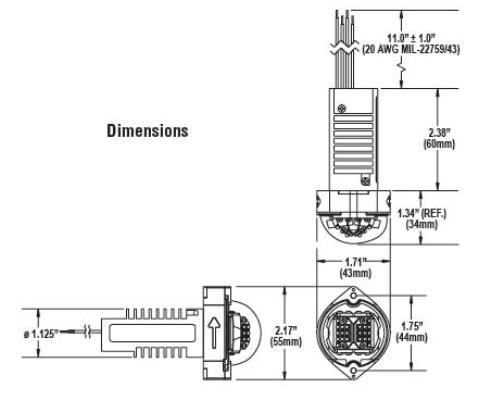

  • Dimensions (H x W x L): See Dimension Drawing

  ---

  • Orion Series Crossover Chart
