Sigma-Tek 3-1/8 Attitude Gyro 5000E 9 Ap Output 52 from Aircraft Spruce Europe

Sigma-Tek 3-1/8 Attitude Gyro 5000E 9 Ap Output 52

Part number:

10-04894

Sigma-Tek 3-1/8 Attitude Gyro 5000E 9 Ap Output 52

5051.57 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

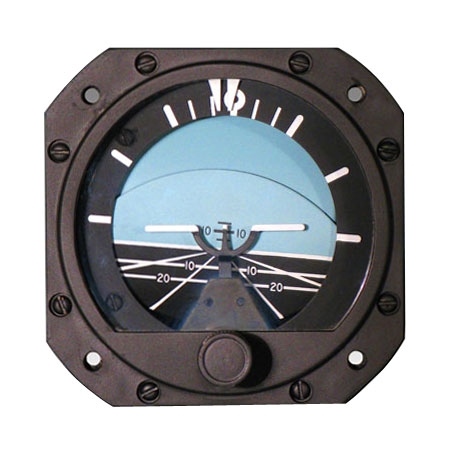

The 5000E air-driven attitude gyro is another variation of our standard 5000B model. It includes inductive pickoffs that generate the signals necessaryto drive an autopilot. The intuitive display has a moving horizon mask that indicates the position of the aircrafts wings in relation to the natural horizon. This attitude information is passed along to the autopilot system.

This is one of our most popular primary instruments. It is FAA approved, and can replace the turn coordinator when equipped with an inclinometer.

Many Sigma-Tek autopilot gyros are FAA PMA approved for use in ARC and Century CII, CIIB, CIII and CIV autopilot installations.

NOTE: Lighted instruments do not include lamp trays, please see accessories to purchase separately.

Height: 3.38"
Width: 3.38"
Depth: 7.51"
Weight: 2.2 lbs. max.
Markings: Matte white
Finish: Dull black
Temperature:-30° to 50° C
Vibration: (CPS:5 to 50 / Maximum Double Amplitude:0.020 in./ Maximum Acceleration:1.5 G's)
Humidity:0% to 95% at 32° C
Altitude:0 to 40,000 ft.

Unit	EA
Hazardous	No
Oversize	No
Weight	2.268 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
