Pressure Fuel Cap 2 1/2 from Aircraft Spruce Europe

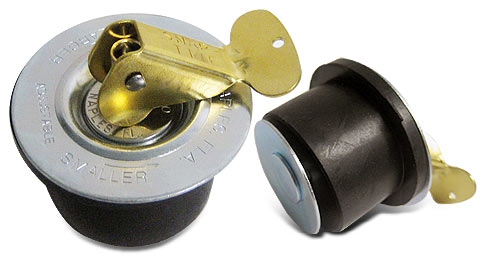

Pressure Fuel Cap 2 1/2

Part number:

05-18402

174.50 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 12 November if you order before 16:00 Wednesday 05 November. This information is valid for up to 4 EA

Available Quantities:

In 9 days:

4 EA

Description:

Pressure fuel caps are recommended for aerobatic installations. These caps are made with Buna-Nitrile gaskets for fuel resistance. These caps are non-vented for gravity fuel systems. It is highly recommended that a #40 (3/32") drill is used to drill a vent hole through the lower base plate and stud assembly using a drill press.

The dimension referenced on these pressure fuel caps is the OD of the rubber grommet around the neck (base).

Accessories:

P/N 10367-3 3-Inch Aluminum Neck Adapter For Fuel Cap
P/N 10367-6 6-Inch Alum. Adpt. Nck Fuel Cap.

Q+A:

What dimension is referenced - the rubber grommet outside diameter or the top metal plate?
The dimension referenced on these pressure fuel caps is the OD of the rubber grommet around the neck (base).

Unit	EA
Hazardous	No
Oversize	No
Weight	0.386 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes

This part is included in the following categories:

Start > airframe parts > fuel systems > caps > pressure caps > thermos style pressure fuel caps
Start > engine parts > fuel systems > caps > pressure caps > thermos style pressure fuel caps
