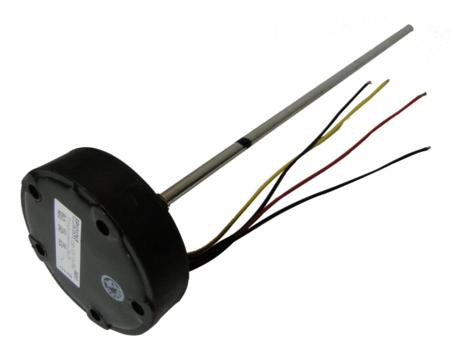

The probe is constructed of concentric tubing (a small tube inside a larger tube). The tubes, which are separated by small insulators to keep the tubes from touching, acts as a capacitor that has one value in air (empty tank) and changes in value as the fuel level rises inside the probe. The amplifier converts these values to a signal suitable to drive a standard meter or other display device. Can be manually calibrated. See Documents tab.

• 12 Volts
• 24 Inch
• 5 Inch Bend

• Installation and Calibration (PDF)
