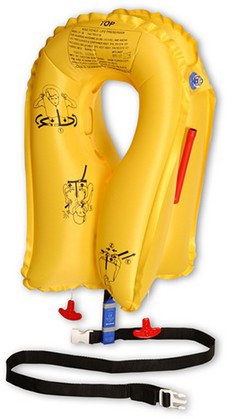

The XF-35 is the world's lightest weight twin-cell vest in the aviation market today, only 1.13 lbs. (513 grams). The XF-35 offers significant fuel savings to operators wishing to stay with the added security of a twin-cell vest. 5 year frequency of inspection standard.

• Download the Technical drawing

• Inflated Buoyancy: 35 lbs. (150 Newtons) minimum
• Inflated Volume: 970 cu. in. (16 liters) minimum
• Approvals: USA FAA TSO-C13f; German LBA Approval No. 40.321/33; United Kingdom CAA Approval No. AR01445
• Category of Preserver: Adult/Child Combination
• Weight of wearer: 35 lbs. (15.91kg) and above
• Inflatable Buoyancy Cells: 2 Independent Cells
• Material: Urethane Coated Nylon, Flame Retardant
• Construction: RF Heat Sealed Seams
• Inflation System:Manual CO2 Inflator and an Oral Inflation Tube in each Buoyancy Cell.
• Color: Passenger Yellow or Crew Molten Orange
• Temperature: Functional Range: -40 to 140 oF (-40 to 60 oC)
• Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
• Humidity: Functional Range: Up to 95% Relative Humidity; Storage Range: Up to 70% Relative Humidity
• Altitude: -2000 to 45,000 feet above sea level
• CO2 Gas Charge: 2 x 0.035 lbs. (2 x 16 grams)
• Survivor Locator Light: Water-activated. TSO-C85 Approved.
• Service Life: Indefinite if unit continues to pass periodic maintenance inspection.
• Frequency of Inspection: Every 60 months for P01074-1XX Assys. in Standard Polybag, Vinyl Bag, or PSU Pouch packs; Ten (10) year frequency available in special Extended Shelf Life packaging.
