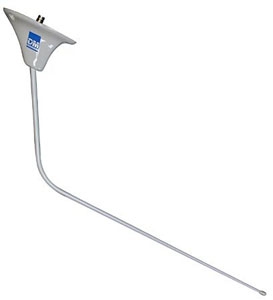

Dorne Dm C63-2 COMMAntenna
| Part number: | 11-02765 |
Description:
| 118-137MHz BENT ROD Frequency Range 118-137 MHz The DM C63-Series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications. The DM C63-2 is a low profile "bentback" radiating element designed for mounting on the bottom of the fuselage. All DM C63-Series antennas are supplied with a gasket and a doubler plate. |
|
| Electrical | |
| Frequenc y Range | 118 - 137 MHz |
| VSWR | 3.0:1 |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Gain | Equivalent to a quarter wave stub |
| Impedance | 50 Ohms |
| Power | 50 W |
| TSO | C37d and C38d |
| Mechanical | |
| Weight | 8 oz |
| Height | 8.0 in. Max |
| Finish | White |
| Connectors | BNC Female |
| Environmental | |
| Per D0160C | F2-ABCXXXXXXXXXXXXXXXX |
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 0.726 kg |
| Manufacturer | |
| Manufacturer P/N | |
| GTIN | |
| Core Charge | Yes (add to cart to see price) |
| 110V device | Yes |
