CLOUD9 CESSNA STRUT CAMERA MOUNT 185 205 206 210

W3 Cessna Strut Camera Mount with 9.25 Inch long strap: 185 205 206 210

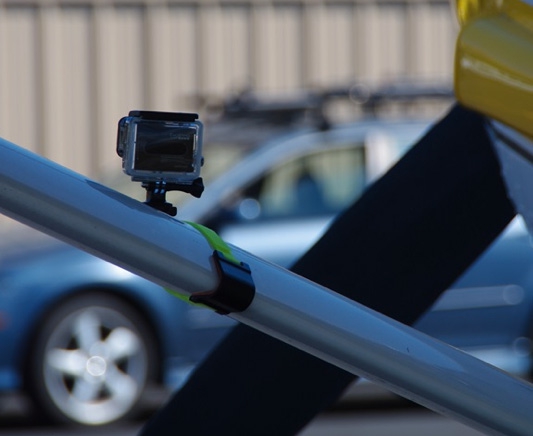

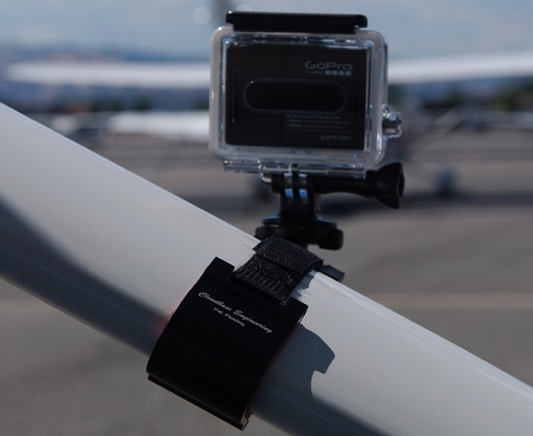

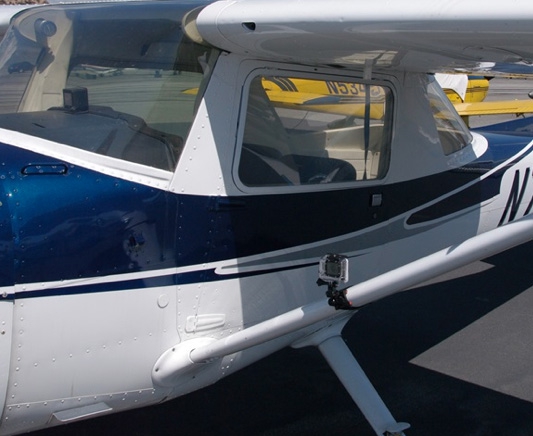

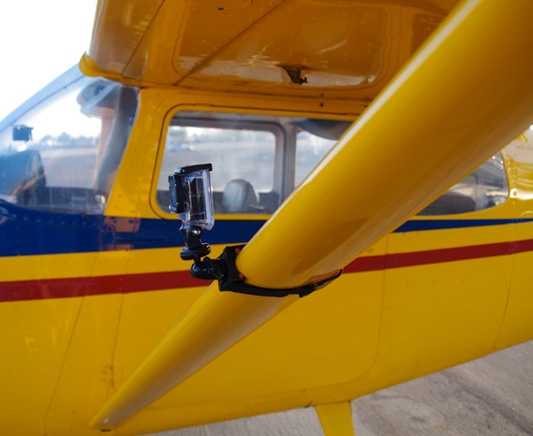

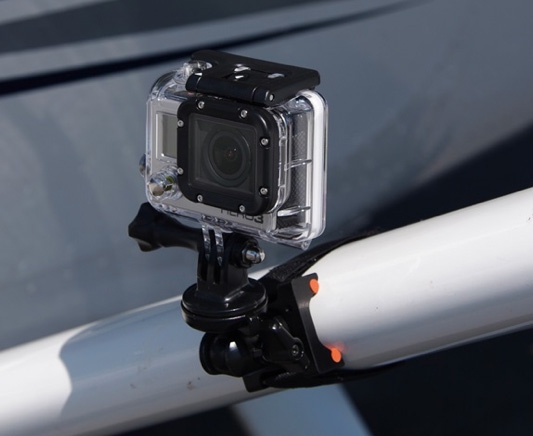

The W3 Camera Mount by Cloudbase Engineering has been specifically designed to mount industry standard action cameras to the wingstrut on General Aviation aircraft. In addition to aircraft, The W3 Mount can also be reconfigured to attach to tubular structures between 1.13" and 2.80" in diameter. Switching between the wingstrut configuration to the tubular configuration takes seconds. The patented attachment method ensures that the mount will not mar or damage the wingstrut or tube it is attached to yet provides a very solid point of attachment. Also the attachment method used will work with varying leading edge diameter struts as well as varying diameter tubes and does not rely on matching any exact profile shape of the mounting surface. The W3 Camera Mount is machined from proprietary 6061 Aluminum extrusions specifically designed for this product. The camera mounts to a ¼-20 stud attached to the professional ball mount which gives freedom of movement to set up the shot needed; camera forward, rearward sideways it’s up to your imagination. Also the ball mount does away with the flimsy plastic mounting hardware and brackets commonly supplied with action cameras and also used on other mounts for a much more rigid and a vibration minimizing attachment between camera and mounting surface.

Experimental aircraft utilizing Cessna wingstruts can also use this mount. The Tubular Configuration may be used on the following:
hanglider, motorcycle front fork, motorcycle slide pegs, ATV frame, roll bar on any vehicle (gocart, racecar, atv). wakeboard tower, sailboat mast, ski lift chair, speedy rail for the film industry, mountain bike head tube & front fork, and windsurfer mast; If its round and fits within the specs it will likely work with the proper length strap.

The W3 Camera Mount is supplied with a set of straps for the required aircraft as well as a longer strap that can be used for most tubular configurations. An additional set of rubber contact points is also supplied with an allen wrench and a few spare parts should any be lost during configuration changes. Action cameras with integrated 1/4-20 attachment points such as the Drift, Sony Action Cam and JVC Adixxion can use the W3 mount as supplied. When using the W3 Mount with a GoPro, Garmin Virb or Contour the addition of a tripod mount accessory is required to give the camera the 1/4-20 mounting feature, sold seperately. The W3 Mount is designed to carry camera payloads comparable between industry standard action camera models, but point and shoot cameras can be used but max payload needs to be 1lb or less.
