Big-Screw EZ Tie-Down is an innovative tie down system combining a lightweight 18” cast aluminum ground screw, and a custom aviation designed attachment strap. The 18-inch long cast aluminum screw provides stronger ground holding in all soil types. The screw penetrates deeply into compacted soils resulting in superior holding strength. This exclusive design provides two to three times the holding strength of spike type angled-in tie-downs. Large 1¾” Wide screw provides 80 Square inches of Ground Contact Area, 40 times more than a spike. The screw can be positioned either directly below or set out from aircraft attachments. Quick easy installation and removal using a 1” ratchet, 1” socket, or a portable impact wrench (not included).

Features:

• Two to Three Times the Holding Strength of other Products
• Heat Treated 356 Aluminum Alloy Screw
• Light-Weight only 23 Ounces each
• 18-Inch Length Penetrates Deep into Compacted Soil
• 80 Square Inches of Ground Holding Surface Area Per Screw
• Can be positioned directly below or set out from aircraft attachments
• Quick Easy Installation and Removal with 1” ratchet, hex socket or portable impact wrench
• Cast Steel Screw Attachment D-Ring with Webbing Loop

• 9-Foot Industrial Strength Weather-Proof Polyester Straps
• Single Lever Locking Strap Tensioner
• Heavy-Duty Vinyl Coated Dual S-Hooks for aircraft attachments
• Cast-Steel Chrome Plated Tie-Down Attachment Clip
• Detachable Strap can be used on airport ramps

• Compact Padded Storage Bag holds 3 Screws, 3 Strap Sets, and Wrench
• Lightweight, Entire System Weighs only 10 Pounds
• American Manufacture, Pilot Designed

Documents:

• Installation Guide

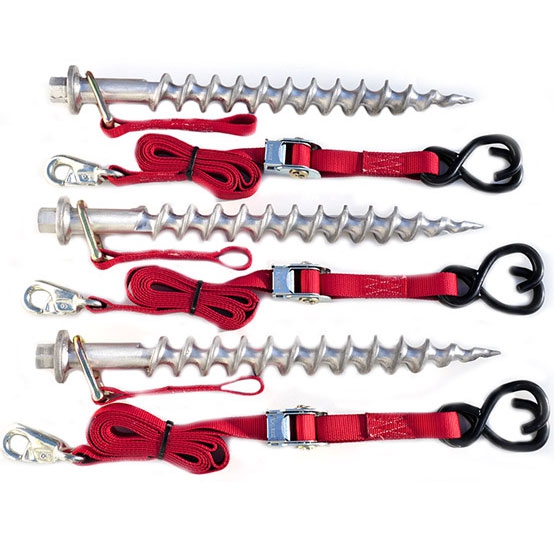

In The Box

• 3 Aluminum Ground Screws with Steel Ring and Loop Strap
• 3 Custom Designed Aircraft Tie-Down Attachment Straps
• Compact Padded Storage Bag
