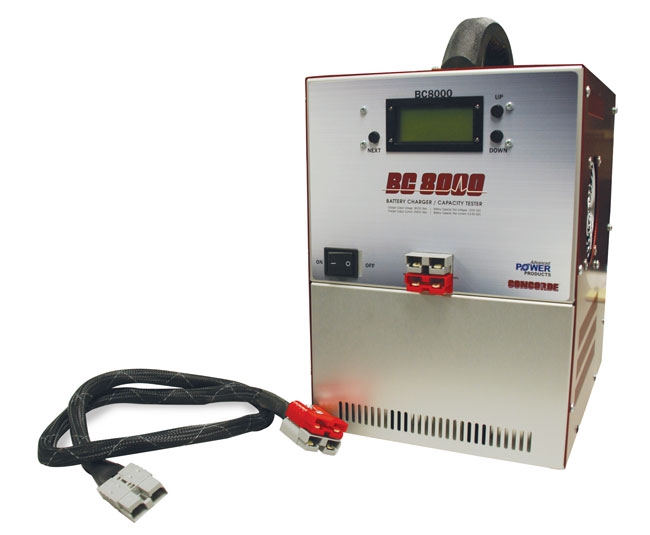

The BC-8000 has been designed to provide the operator with a cost effective battery charger and capacity tester in one unit. The step by step digital display is easy to program in order to set it and forget it.

For use on Nickel Cadmium or Lead Acid Batteries.

Capacity Tester Features:
• Adjustable constant current load in 0.1 Ampere increments from 0.5 Ampere to 15 Ampere (+/- 1.5%)
• Adjustable constant current load in 1.0 Ampere increments from 15 Ampere to 55 Ampere (+/- 1.0%)
• USB 2.0 port for PC connection
• BC Report Utility software for hard copy printout of test results

Charger Features:
• Adjustable output from 3.0 to 36.0 Vdc
• Adjustable output amperes from 0.05 to 25 Adc
• Constant voltage (CV) or constant current (CC) charge
• Adjustable charge time from 1-999 min
• Single or two step charge routine

Common Features:
• Universal AC power input 90~264vac (47 to 64Hz)
• 10mv voltage resolution 4 line LCD display
• Over temperature protection
• Audio warning when capacity test is complete or if
the unit malfunctions
• Real time internal clock with battery backup
