Aerospace Logic Rotational Speed Sensor For Bendix from Aircraft Spruce Europe

Aerospace Logic Rotational Speed Sensor For Bendix

Part number:

10-04806

437.06 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

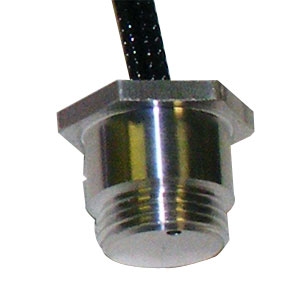

The A200-HMB is an Hall Effect rotational speed sensor. It provides a speed accuracy of 1 RPM when used in conjunction with the TM200 instrument.

Supplied with a 48" color coded cable.

Specifications

The output signal is a latched, pulse width modulated square wave output of 0V to a maximum of 30V, proportional to rotational speed
Power requirements are 3.8V to 30V / 3mA
Precision machined from 6061 T6 aircraft grade aluminum, this sensor is designed to thread into the vent hole of Bendix unpressurized magnetos
