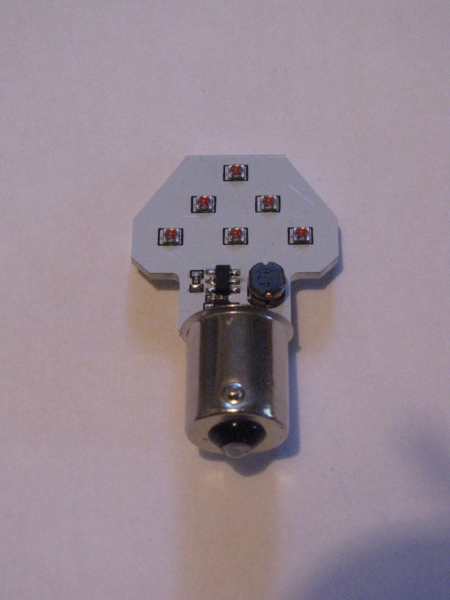

AIRCRAFT WINGTIP NAVIGATION LIGHT-RED STROBE

Part number:

11-11989

AIRCRAFT WINGTIP NAVIGATION LIGHT-RED STROBE

95.30 EUR

excl. VAT, excl. shipping

Available Quantities:

unknown

Description:

Meets FAA AC No: 20-74 requirement.

These bulbs are standard parts and have been designed to meet the requirements of TSO-C30c.

Emitter Type: Red Cree LED's
Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc.

Application Info:

NavStrobe Wingtip Bulbs: Will replace the following commonly installed bulbs: W1290-14, W1290-28, T7572-12V, T7572-24V, or any BAY15S base lamp. See "Drawing" tab to confirm dimensions will work with currently installed bulb on your aircraft.

Specifications:

Total Emitters: 10 x 3w
Power: 30W
Color BIN: Red
Rated Voltage: 10-30VDC
Draws <855ma @ 14.2VDC
Luminous Flux: 150.9LM/12cdl (-10 degrees), 665LM/53.2cdl (90 degrees)
Color Temperature: 629-630k
2 modes: constant & fast strobe

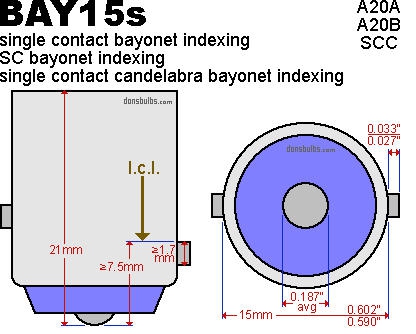

Base Type: BAY15s = Single contact and offset pin. (A-1512)
Application: Wingtip Navigation Light replacement.
Contains 1 light bulb per pack
Dimensions: 2.0 in x 0.7 in (52 mm x 1.8 cm)
Weight: 0.32 oz (9 g)

Q+A:

Do you have to have a flash set up or do you just plug in the new bulb assembly?
It is plug and play. Just switch out the bulb. Then you simply flip the switch each time you want to change between constant and strobe.

Near as I can tell, I have Whelen combo Nav lights and strobes on my 172D. Would these fit as plug and play replacements?
Per the supplier: My lights are a direct replacement to the combination Whelen strobe and nav lights. They are plug-n-play drop in's. for the front nav (position) lights.

Is the flash intensity greater than the continuous mode, like the Whelen Nav light/strobe combination? Or does it use the same LEDs, just flashing rather than on continuously?
Per the supplier: The strobe mode is 2x brighter than the steady on mode since the power draw is much less and the LEDs can be driven harder.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.023 kg
