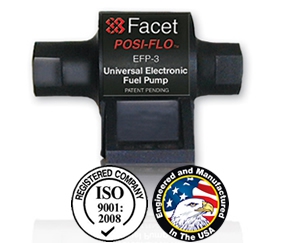

Shipping country set to Germany60304 Facet Posi-Flo Pump
| Part number: | 05-10882 |
78.37 EUR
incl. 19% VAT, excl. shipping
Expected shipping date is Wednesday 02 July if you order before 16:00 Wednesday 25 June. This information is valid for up to 12 EA
Available Quantities:
| In 9 days: | 12 EA |
Description:
| Facet No. | Volts | PSI Max-Min | GPH | Fitting Size | Lift Min. Dry | Check Valve | Position Shut Off Valve | Description |
| 60304 | 12 | 2.0-1.0 | 15 | 1/8 - 27 INT | 24" | Y | N | Facet Posi-Flo Fuel Pump |
- Fuel Compatibility: All models of the Facet Posi-Flo Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.
- Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric pumps.
- Easy to Install-Easy to Service: Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.
- Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.
Specifications:
- 12 inches minimum dry lift
- 23 - 40 GPH
- 1.5 - 10 PSI
- ESD compliant
- 1.5 amp average
- Diesel Priming and Self Regulating
- Light-Weight - Compact
- Internal 3.5 amp fuse
- Quiet valve - 65Db
Q+A:
Does this pump allow fuel passage when turned off? (depowered)
Per the tech data this unit has a check valve, but does not have a positive shut off, so it will flow in the normal flow direction when off.
What is the distance of the mount holes center to center?
Regarding Part # 05-06862 (FACET 60300 POSI-FLO PUMP), the distance center to center of the mounting holes is approximately 2-1/2".
What is the weight of the Posi Flow 60302 pump (part # 05-06864)?
This pump weighs approximately 0.79 lbs.
Are these pumps compatible with kerosene and/or Jet A?
The tech data sheet does not mention these kerosene or Jet A specifically. It does mention that this unit can be used with gasoline, diesel, biodiesel, blended alcohol fuels, & fuel additives.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 0.295 kg |
| Manufacturer | |
| Manufacturer P/N | |
| GTIN | |
| Core Charge | Yes (add to cart to see price) |
| 110V device | Yes |
