Fuel Compatibility:
All models of the Facet High Performance Gold-Flo Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability:

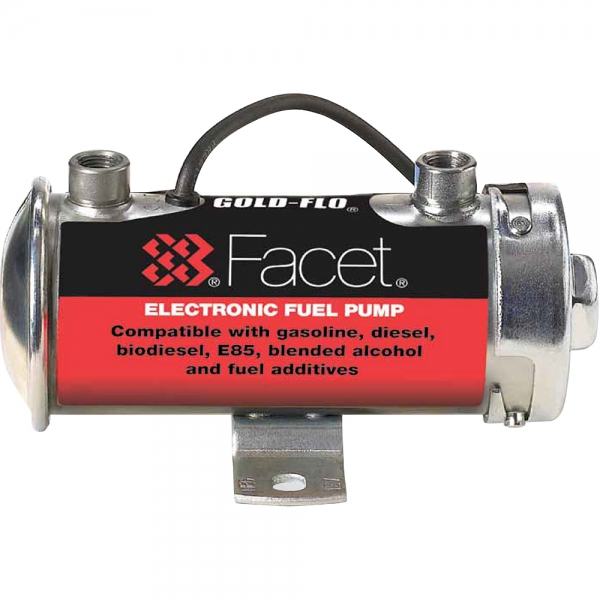

The new Gold-Flo Solid State Fuel Pump is an enhanced version of our Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to our test data).

Easy to Install-Easy to Service:
Two bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. An installation kit is available for replacement applications. The only service normally required is a simple cleaning of the filter and fuel inlet cavity.

Eliminates Vapor Lock:
When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

• 12 - 24 inches dry lift
• 20 - 45 GPH
• 1 - 8 PSI
• Transient Protection - 24 volt only
• State of the art Electronics
• Sealed Electronics
• Built in Anti-Siphon Valve (Positive shut-off)
• UL Certified
• VCA Certified
• Complies to Mil-std-461D
• Replaceable 74 micron filter
• Built in magnet to collect metal particles for additional filtration
• 1.6 amp average
• Self Priming and Self Regulating
• 32 ounces and 5 inches
• Corrosion Resistant over 100 hours of salt spray
• Operating Temperature Range: -40F to 180F

• Wire Size Selection Chart (PDF)
