HEIM BEARING LS-4

Part number: LS-4
HEIM BEARING LS-4
29.32 EUR
excl. VAT, excl. shipping
EA
Delivery in 8 days
Expected shipping date is Wednesday 29 May if you order before 16:00 Wednesday 22 May. This information is valid for up to 15 EA
Available Quantities:
In 8 days:15 EA
Description:

LS SERIES

  • Outer Member: Carbon Steel, with protective coating for corrosion resistance on all surfaces exposed after installation.
  • Ball: SAE 52100 Steel, Heat Treated.
  • Inserts: Brass.


LSS SERIES

  • Outer Member: 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation.
  • Ball: 52100 Alloy steel, heat treated, chrome plated.
  • Inserts: Copper alloy


LHA SERIES

  • Outer Member: 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation.
  • Ball: 52100 Alloy steel, heat treated, chrome plated.

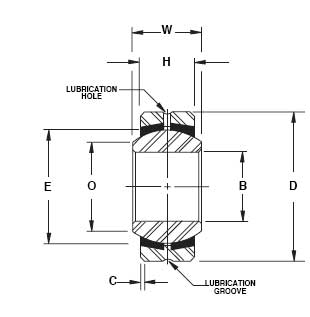

Reference Chart

Part
No.
B
D
W
H
C
E
O
Max
Radial
Load
Wgt
LS-3 .1900 .6250 .281 .187 .016 .406 .293 2960 .02
LS-4 .2500 .7500 .375 .281 .016 .515 .354 5245 .04
LS-5 .3125 .8750 .437 .313 .016 .625 .447 6550 .05
LS-6 .3750 1.0000 .500 .375 .016 .718 .517 8605 .08
LSS-3 .1900 .5625 .281 .218 .020 .406 .293 2750 .02
LSS-4 .2500 .6562 .343 .250 .022 .500 .364 4200 .02
LSS-5 .3125 .7500 .375 .281 .022 .562 .419 5800 .03
LSS-6 .3750 .8125 .406 .312 .032 .625 .475 7150 .04
LSS-8 .5000 1.000 .500 .390 .032 .781 .600 11200 .07
LHA-2 .1650 .4687 .250 .187 .020 .343 .235 4400 .01
LHA-3 .1900 .5625 .281 .218 .020 .406 .293 6480 .02
LHA-4 .2500 .6562 .343 .250 .022 .500 .364 10000 .02
LHA-6 .3750 .8125 .406 .312 .032 .625 .475 18750 .04
UnitEA
HazardousNo
OversizeNo
Weight0.018 kg
Alternative P/NLS4
