INTELI DOCK CERTIFIED USB CHARGER

Part number: 11-11872
INTELI DOCK CERTIFIED USB CHARGER
448.89 EUR
excl. VAT, excl. shipping
EA
please call
Available Quantities:
unknown
Description:

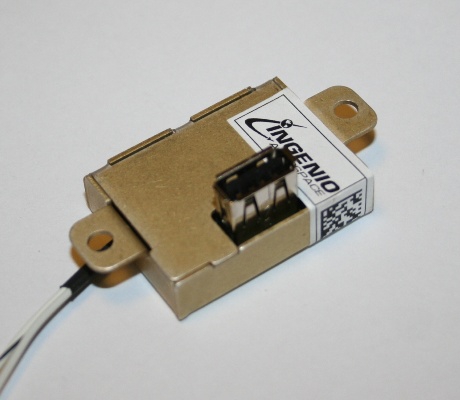

The Aero-Port by Ingenio is a USB charger for portable electronic devices that is purposefully engineered to meet the stringent technical requirements of the aviation industry. It is the most compact USB Charger designed specifically for aircraft. The Aero-Port is a unique product and within it's small housing is an extremely powerful charger designed to be robust enough to power all of today's ever growing list of electronic devices. It's very small housing allows installation is almost any aircraft.Designed and built with Inteli-Fuse™ technology the Aero-Port offers maximum protection from power irregularities.
Output protection is activated automatically and fully restored once a short circuit is corrected. Input protection is activated by temporarily disconnecting from the power source and is also self-correcting. Input protection is activated by temporarily disconnecting from the power source and is also self-correcting. Intel-Fuse™ protection makes the Aero-Port very reliable and does not require any servicing after a power hazard situation. This eliminates service costs while fully protecting user devices. The Aero-Port can be easily installed in seats, cabin side ledges and monuments and in the cockpit. It can be mounted on a wide range of fixed points due to its small physical size. This makes it ideal for almost all general aviation aircraft. The Aero-Port charges all the most popular PDA/mobile devices on the market today including products from Apple (iPod / iPhone / iPad) all generations, Samsung and Blackberry.

  • Over voltage Inteli-Fuse™ technology
  • Minimum input voltage 7.5 VDC
  • Main input voltage 28 VDC
  • Over voltage Inteli-Fuse™ level 36 VDC
  • Nominal output voltage 5v
  • Maximum output current 2.5A
  • Over voltage output protection
  • Output short circuit active protection
  • Maximum input current 0.46A at 28 VDC
  • Wire length 7 in
  • Weight 0.0551 lb (25g)
  • Width 2.28 in
  • Length 1.57 in
  • Height 0.75 in
  • Reverse power installation protection
  • USB connector locking mechanism
UnitEA
HazardousNo
OversizeNo
Weight0.091 kg
Alternative P/N209-6407-002
